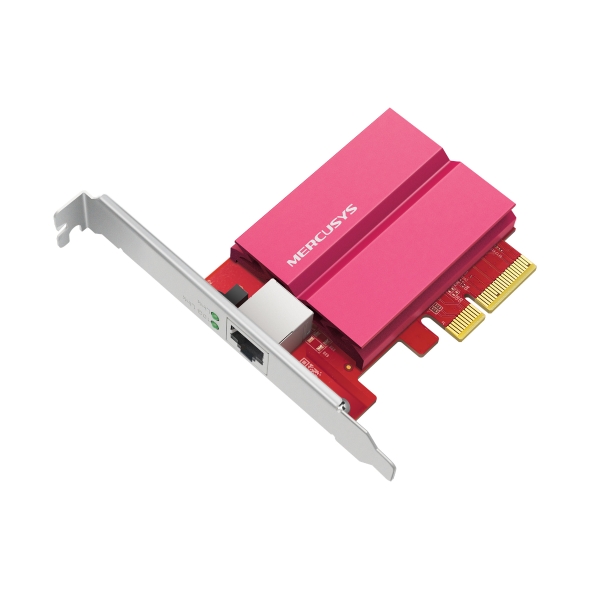

MA510E 10 Gigabit PCle Network Adapter

MA510E(UN)

Features
  • Blazing-Fast 10 Gbps Networking — MA510E delivers extreme speeds of up to 10 Gbps, which is 10× faster than typical Gigabit adapters
  • Multi-Speed Compatible — Automatically negotiates between higher and lower speed connections to ensure smooth data transmission for all your bandwidth-intensive tasks.

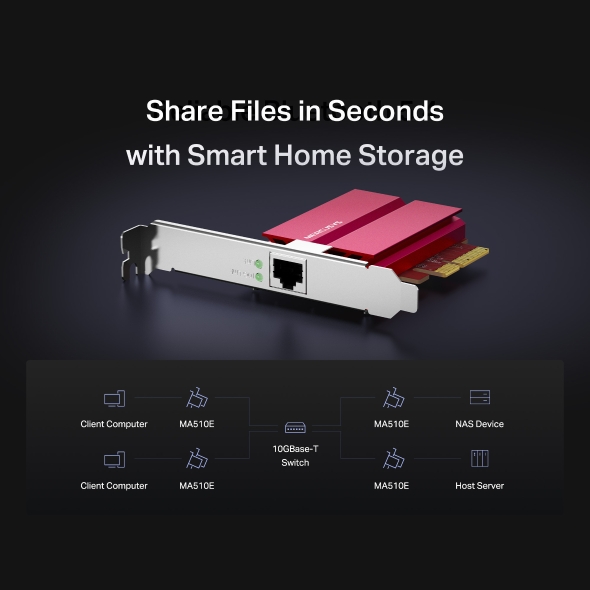

  • Share Files in Seconds — MA510E fully utilizes your 10 Gbps internet access and can seamlessly connect to NAS devices for high-speed local data transmission.
  • Flow Control — The dynamic point-to-point credit management mechanism ensures high-speed data transmission with zero packet loss, delivering a low-latency multi-gig experience.
  • Wake-on-LAN — Remotely power on/off your PC via a dedicated network signal, making it the ultimate companion for remote work.

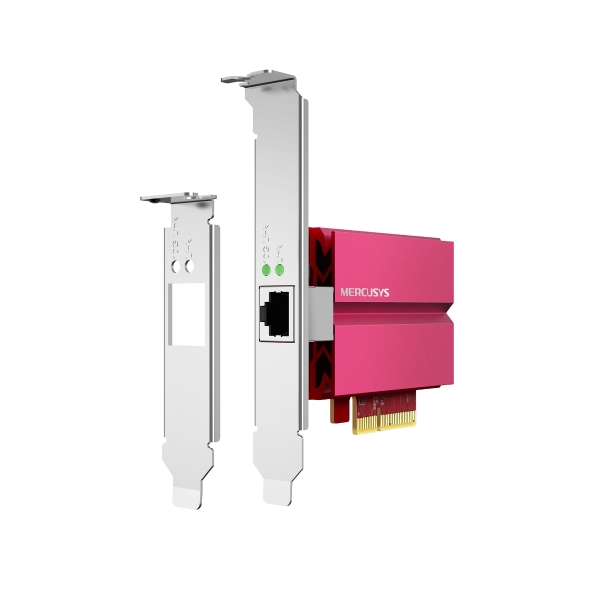

  • Flexible Installation — Includes both standard and low-profile brackets for compatibility with various board designs.
  • System Compatibility — Supported operating systems include Windows 11/10/8.1/8, Windows Servers 2022/2019/2016/2012 R2, and Linux.



Product description

MA510E 10 Gigabit PCle Network Adapter

MA510E(UN)

  • Blazing-Fast 10 Gbps Networking — MA510E delivers extreme speeds of up to 10 Gbps, which is 10× faster than typical Gigabit adapters
  • Multi-Speed Compatible — Automatically negotiates between higher and lower speed connections to ensure smooth data transmission for all your bandwidth-intensive tasks.
  • Share Files in Seconds — MA510E fully utilizes your 10 Gbps internet access and can seamlessly connect to NAS devices for high-speed local data transmission.
  • Flow Control — The dynamic point-to-point credit management mechanism ensures high-speed data transmission with zero packet loss, delivering a low-latency multi-gig experience.
  • Wake-on-LAN — Remotely power on/off your PC via a dedicated network signal, making it the ultimate companion for remote work.
  • Flexible Installation — Includes both standard and low-profile brackets for compatibility with various board designs.
  • System Compatibility — Supported operating systems include Windows 11/10/8.1/8, Windows Servers 2022/2019/2016/2012 R2, and Linux.







MA510E 10 Gigabit PCle Network Adapter



Specifications:

Brand

Mercusys
Dimensions

120.8 × 98.2 × 21.5 mm

(4.76 × 3.87 × 0.85 in)

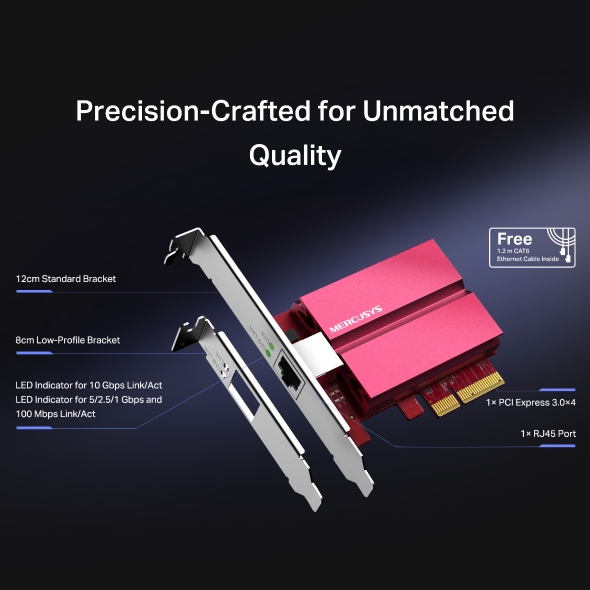

Interfaces

1× PCI Express 3.0×4, 1× RJ45 Port
Network Media

10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX
Data Rates

Auto negotiation between 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, and 10 Gbps
LED

10 Gbps Link/Act, 5/2.5/1 Gbps and 100 Mbps Link/Act
Standards and Protocols

802.3x Flow Control
802.3az Power Saving
802.3i 10BASE-T
802.3u 100BASE-T
802.3ab 1000BASE-T
802.3bz 2.5GBASE-T and 5GBASE-T
802.3an 10GBASE-T
Certifications

CE, RoHS
Warranty Year

3 Years
EAN code

6957939003319
