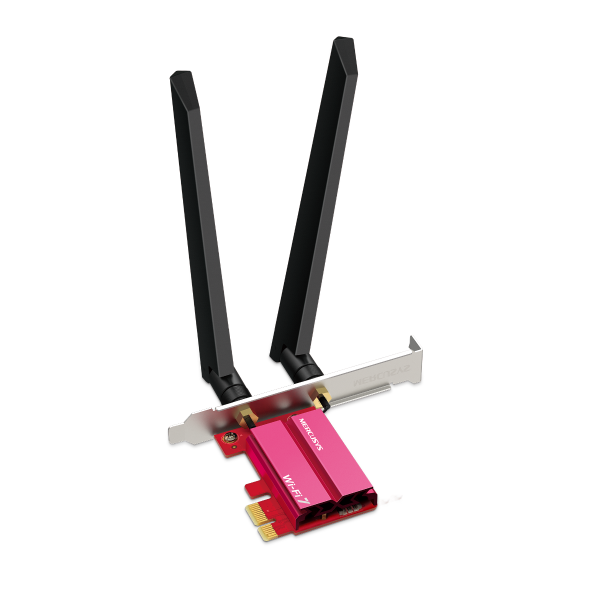

MA47BE BE9300 WiFi 7 Bluetooth 5.4 PCIe Adapter

MA47BE(UN)

Features

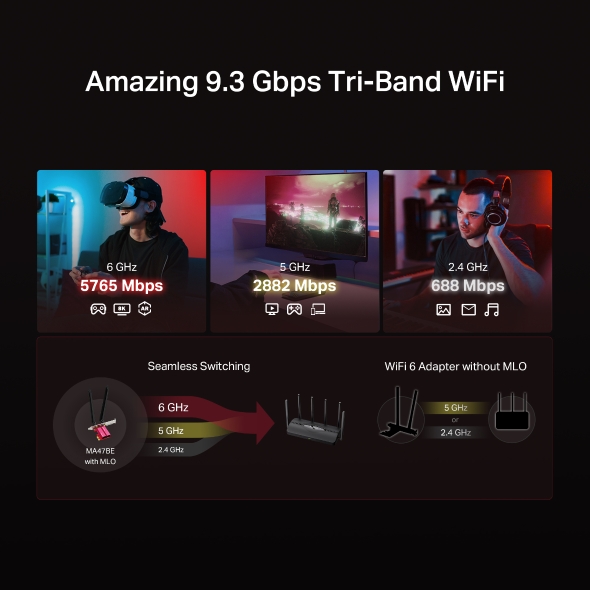

  • Unparalleled Tri-Band Speed — Boost your overall speeds up to 5765 Mbps (6 GHz) + 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz).

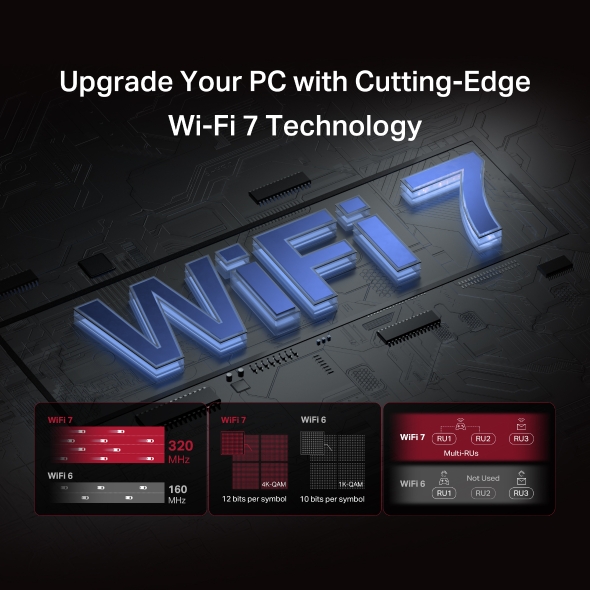

  • Wi-Fi 7 Standard — Upgrade your PC with cutting-edge Wi-Fi 7 technology.
  • Better Performance — More devices, lower latency, and less congestion.
  • Bluetooth 5.4 — Improved speed, range, security, and reliability over the previous generation.

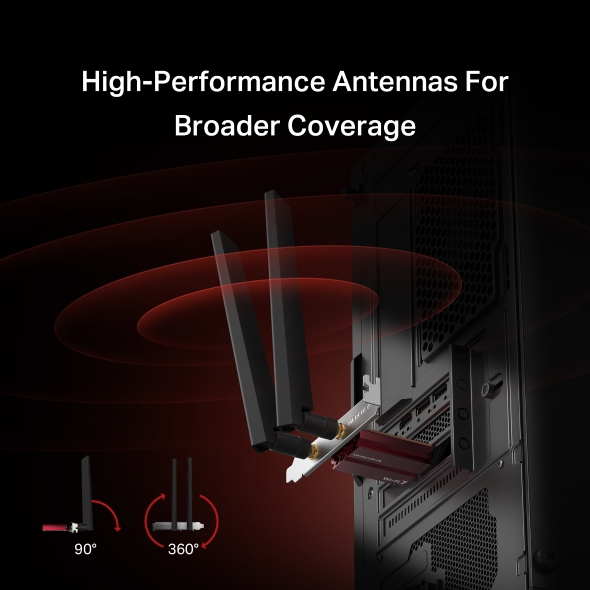

  • Broader Coverage — Two high-performance omnidirectional antennas ensure stronger signal transmissions and reception.

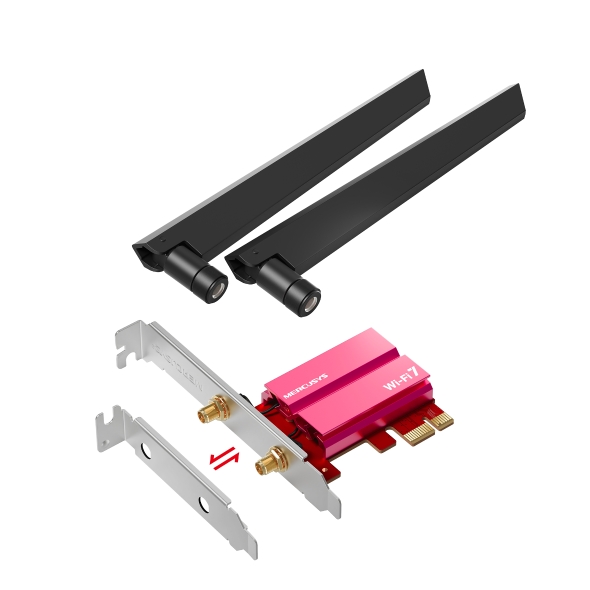

  • Flexible Installation — Includes both standard and low-profile brackets for compatibility with various board designs.
  • Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety.
  • Supported Operating Systems — Compatible with Intel-based Windows 11/10 (64-bit) only. Does not support AMD platforms.

Product description

MA47BE BE9300 WiFi 7 Bluetooth 5.4 PCIe Adapter

MA47BE(UN)

  • Unparalleled Tri-Band Speed — Boost your overall speeds up to 5765 Mbps (6 GHz) + 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz).
  • Wi-Fi 7 Standard — Upgrade your PC with cutting-edge Wi-Fi 7 technology.
  • Better Performance — More devices, lower latency, and less congestion.
  • Bluetooth 5.4 — Improved speed, range, security, and reliability over the previous generation.
  • Broader Coverage — Two high-performance omnidirectional antennas ensure stronger signal transmissions and reception.
  • Flexible Installation — Includes both standard and low-profile brackets for compatibility with various board designs.
  • Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety.
  • Supported Operating Systems — Compatible with Intel-based Windows 11/10 (64-bit) only. Does not support AMD platforms.





MA47BE BE9300 WiFi 7 Bluetooth 5.4 PCIe Adapter











Specifications:

Brand

Mercusys
Wireless Standards

IEEE 802.11 ax/be 6 GHz
IEEE 802.11 a/n/ac/ax/be 5 GHz
IEEE 802.11 b/g/n/ax/be 2.4 GHz
WiFi Speeds

5765 Mbps on 6 GHz
2882 Mbps on 5 GHz
688 Mbps on 2.4 GHz
Reception Sensitivity

2.4 GHz:
11g 20M 6Mbps:-94 dBm
11g 20M 54Mbps:-77 dBm
11be EHT40 MCS0:-92 dBm
11be EHT40 MCS11:-61 dBm

5 GHz:
11a 20M 6Mbps: -95 dBm
11a 20M 54Mbps:-77 dBm
11be EHT160 MCS0:-86 dBm
11be EHT160 MCS11:-55 dBm

6 GHz:
11be EHT320 MCS0:-83 dBm
11be EHT320 MCS11:-52 dBm
Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE
Dimensions

120.8 × 80.2× 21.5 mm (4.8 × 3.16 × 0.85 in )
Antenna Type

2× High-Performance Omnidirectional Antennas
EAN code

6957939003227
Warranty Year

3 Years
