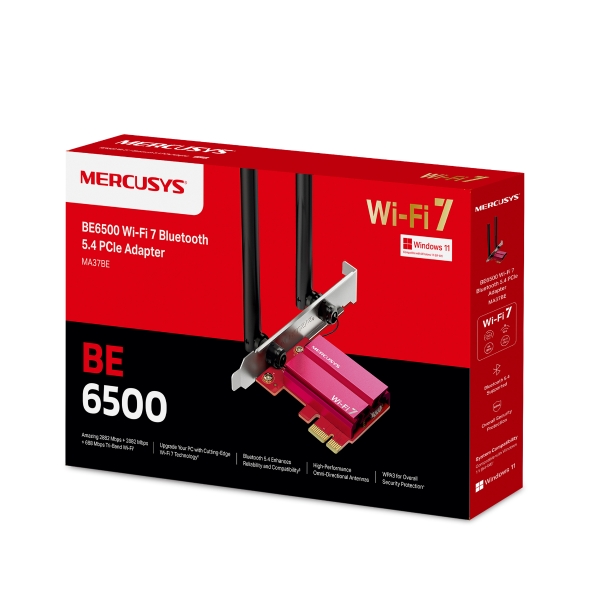

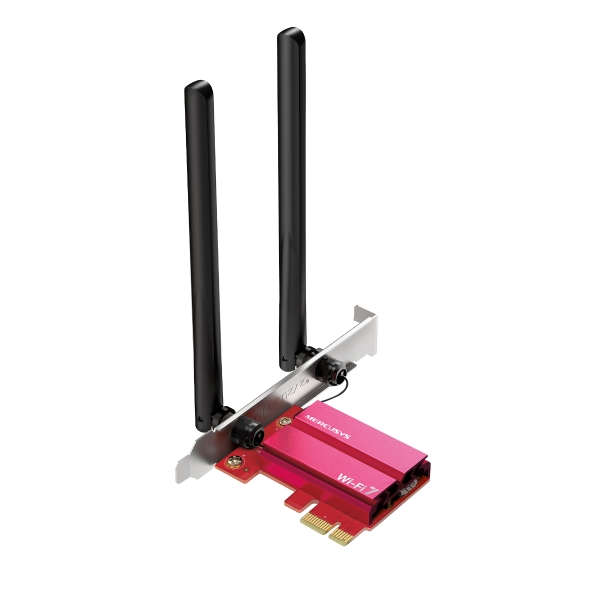

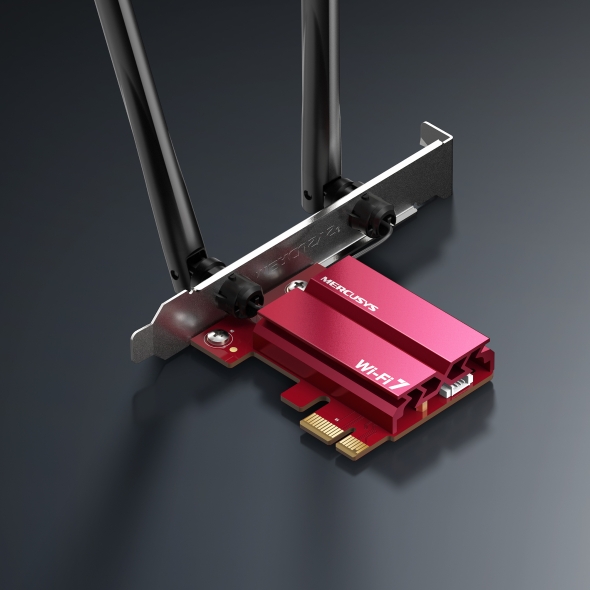

MA37BE BE6500 WiFi 7 Bluetooth 5.4 PCIe Adapter

MA37BE(UN)

Features
  • Unparalleled Tri-Band Speed — Boost your overall speeds up to 2882 Mbps (6 GHz) + 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz)
  • Wi-Fi 7 Standard — Upgrade your PC with cutting-edge Wi-Fi 7 technology
  • Better Performance — More devices, lower latency, and less congestion
  • Bluetooth 5.4 — Improved speed, range, security, and reliability over the previous generation
  • Broader Coverage — Two high-performance omnidirectional antennas ensure stronger signal transmissions and reception
  • Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety
  • Supported Operating Systems — Windows 11 only

**Please note: MA37BE is not compatible with the low-profile bracket because of the fixed antennas.

Product description

MA37BE BE6500 WiFi 7 Bluetooth 5.4 PCIe Adapter

MA37BE(UN)

  • Unparalleled Tri-Band Speed — Boost your overall speeds up to 2882 Mbps (6 GHz) + 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz)
  • Wi-Fi 7 Standard — Upgrade your PC with cutting-edge Wi-Fi 7 technology
  • Better Performance — More devices, lower latency, and less congestion
  • Bluetooth 5.4 — Improved speed, range, security, and reliability over the previous generation
  • Broader Coverage — Two high-performance omnidirectional antennas ensure stronger signal transmissions and reception
  • Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety
  • Supported Operating Systems — Windows 11 only

**Please note: MA37BE is not compatible with the low-profile bracket because of the fixed antennas.







MA37BE BE6500 WiFi 7 Bluetooth 5.4 PCIe Adapter







Specifications:

Brand

Mercusys
Wireless Standards

IEEE 802.11 ax/be 6 GHz

IEEE 802.11 a/n/ac/ax/be 5 GHz

IEEE 802.11 b/g/n/ax/be 2.4 GHz
WiFi Speeds

2882 Mbps on 6 GHz
2882 Mbps on 5 GHz
688 Mbps on 2.4 GHz
Reception Sensitivity

6 GHz:
11ax HE160 MCS0:-86 dBm
11ax HE160 MCS11:-56 dBm

5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm

2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm
Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE
Dimensions

228 × 120.8 × 21.5 mm (9.0 × 4.8 × 0.85 in )
Antenna Type

2× Fixed High-Performance Omni-Directional Antennas
EAN code

6957939003197
Warranty Year

3 Years
