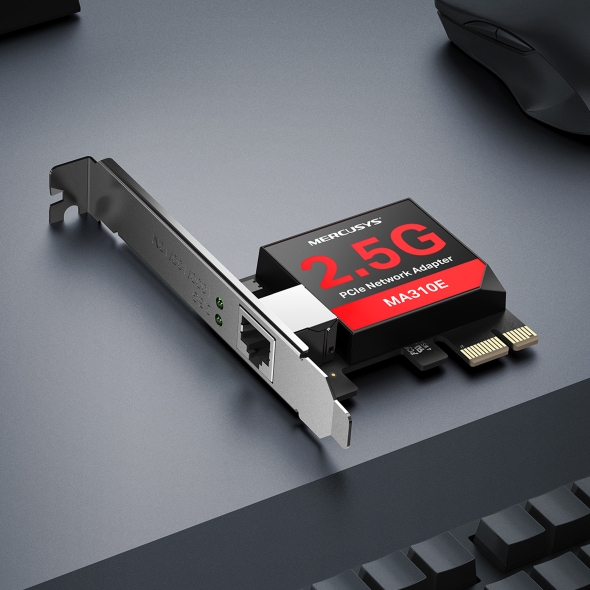

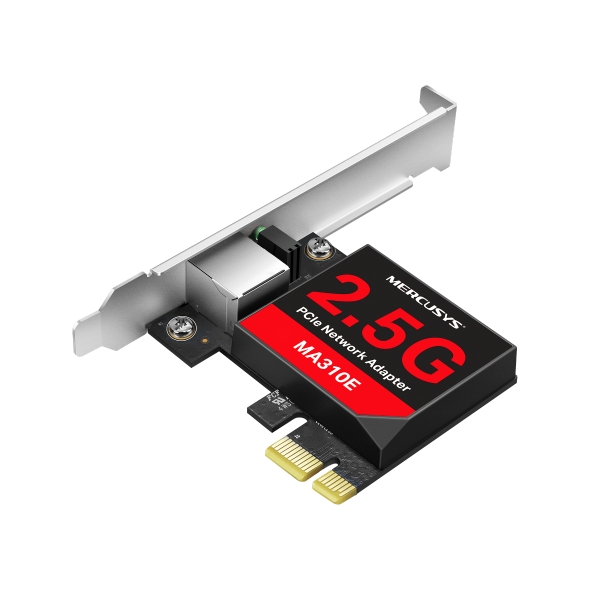

MA310E 2.5 Gigabit PCle Network Adapter

MA310E(UN)

Features
  • Super-Fast 2.5 Gbps Networking — With 2.5G Base-T technology, MA310E delivers high speeds of up to 2.5 Gbps, which is 2.5× faster than typical Gigabit adapters, guaranteeing smooth data transfers for both internet access and local data transmissions.
  • Multi-Speed Compatible — Automatically negotiates between higher and lower speed connections to ensure smooth data transmission for all your bandwidth-intensive tasks.

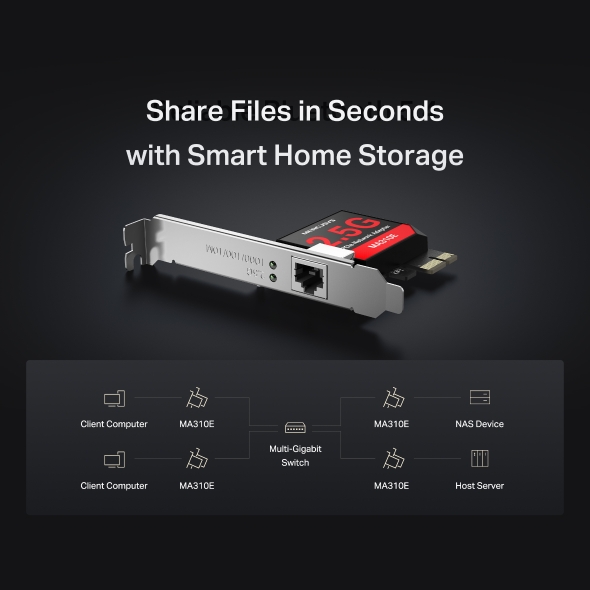

  • Share Files in Seconds — MA310E fully utilizes your 2.5 Gbps internet access and can seamlessly connect to NAS devices for high-speed local data transmission.
  • Wake-on-LAN — Remotely power on/off your PC via a dedicated network signal, making it the ultimate companion for remote work.
  • Energy-Efficient Ethernet (EEE) — Equipped with EEE technology, MA310E can slash energy use, trim your carbon footprint, and guarantee flawless performance.

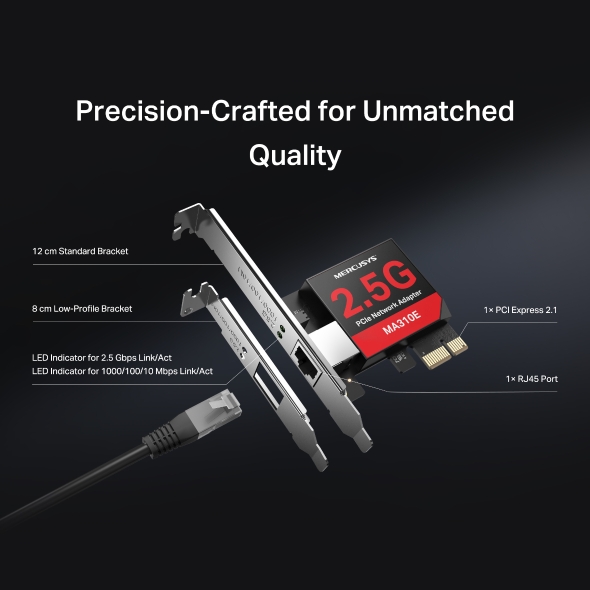

  • Flexible Installation — Includes both standard and low-profile brackets for compatibility with various board designs.
  • System Compatibility — Supported operating systems include Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012R2/2012/2018 R2, and Linux. No driver needed on Windows 11/10. Drivers for other systems are available on the official MERCUSYS website.

Product description

MA310E 2.5 Gigabit PCle Network Adapter

MA310E(UN)

  • Super-Fast 2.5 Gbps Networking — With 2.5G Base-T technology, MA310E delivers high speeds of up to 2.5 Gbps, which is 2.5× faster than typical Gigabit adapters, guaranteeing smooth data transfers for both internet access and local data transmissions.
  • Multi-Speed Compatible — Automatically negotiates between higher and lower speed connections to ensure smooth data transmission for all your bandwidth-intensive tasks.
  • Share Files in Seconds — MA310E fully utilizes your 2.5 Gbps internet access and can seamlessly connect to NAS devices for high-speed local data transmission.
  • Wake-on-LAN — Remotely power on/off your PC via a dedicated network signal, making it the ultimate companion for remote work.
  • Energy-Efficient Ethernet (EEE) — Equipped with EEE technology, MA310E can slash energy use, trim your carbon footprint, and guarantee flawless performance.
  • Flexible Installation — Includes both standard and low-profile brackets for compatibility with various board designs.
  • System Compatibility — Supported operating systems include Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012R2/2012/2018 R2, and Linux. No driver needed on Windows 11/10. Drivers for other systems are available on the official MERCUSYS website.





MA310E 2.5 Gigabit PCle Network Adapter













Specifications:

Brand

Mercusys
Dimensions

78.4 × 120.8 × 21.5 mm

(3.1 × 4.8 × 0.8 in)
Interfaces

1× PCI Express 2.1, 1× RJ45 Port
Network Media

2.5GBASE-T/1000BASE-T/100BASE-TX
Standards and Protocols

802.3x Flow Control
802.3az Power Saving
802.3i 10BASE-T
802.3u 100BASE-T
802.3ab 1000BASE-T
802.3bz 2.5GBASE-T
Data Rates

Auto negotiation between 10 Mbps, 100 Mbps, 1 Gbps, and 2.5 Gbps
LED

2.5 Gbps Link/Act and 1000/100/10 Mbps Link/Act
Certifications

CE, RoHS
Warranty Year

3 Years
EAN code

6957939003289
